YAW-300C Automatic cement compression and folding testing machine
This machine is mainly used for the compressive and flexural strength test of cement and cement products.
一、Main technical parameters
NAME | Parameter |
The largest load | 300KN (compression) /10KN (flexure) |
Indicates the relative error of the value | ≤±0.5% |
Pressure plate size | φ160mm (compression), φ160mm(flexural) |
Maximum piston travel | 80mm |
Precision class | Level 0.5 |
Loading rate | 0-10KN/S (compression) 0-0.75KN/S (folding resistance) |
Maximum oil pressure | 25MPa |
Rated flow of oil pump | 1.52L/min |
Overload protection | Automatic unloading over 3% full scale |
Input voltage | 380V |
Motor power | 0.75KW |
Overall dimension(mm) | 950×450×1200mm |
Net weight | 500kg |
二、System configuration list
Main machine of testing machine | 1 |
Special compression and folding software | 1 |
Pressure sensor 300KN/10KN | 2 |
Industrial computer | 1 |
Folding test AIDS | 1 |
Compression AIDS | 1 |
Spare parts press disk | 1 |
External printer | 1 |

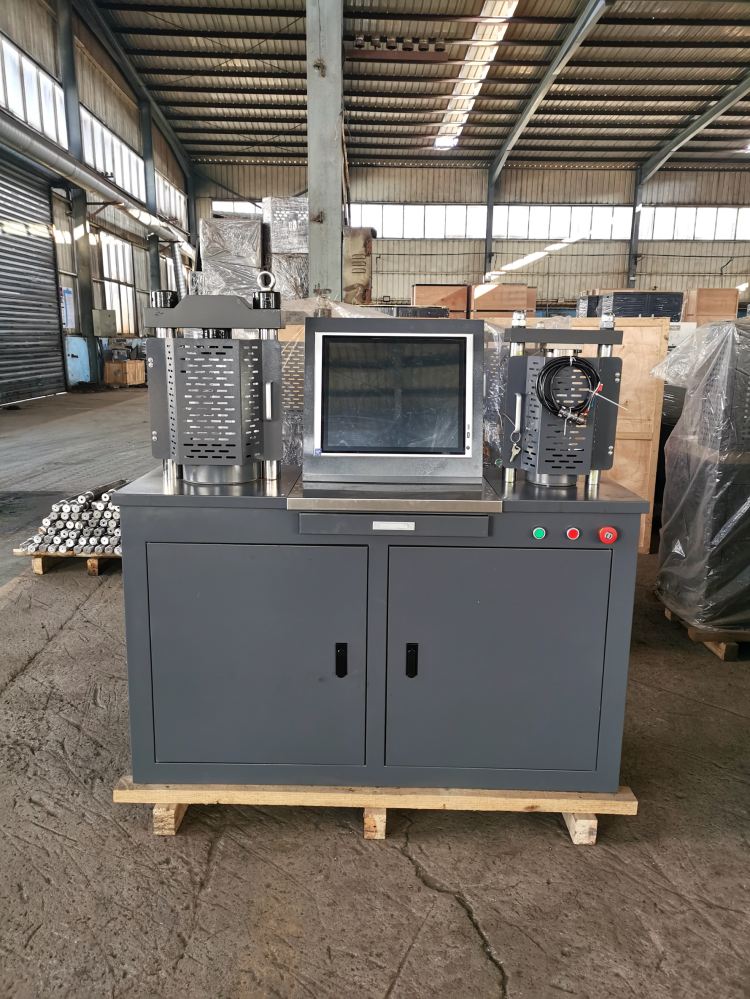

Equipment picture
